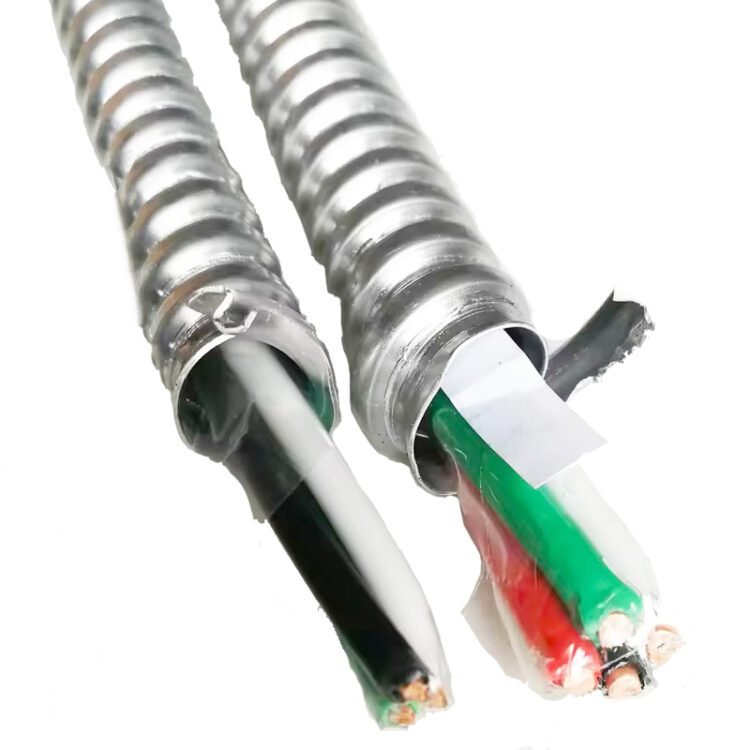

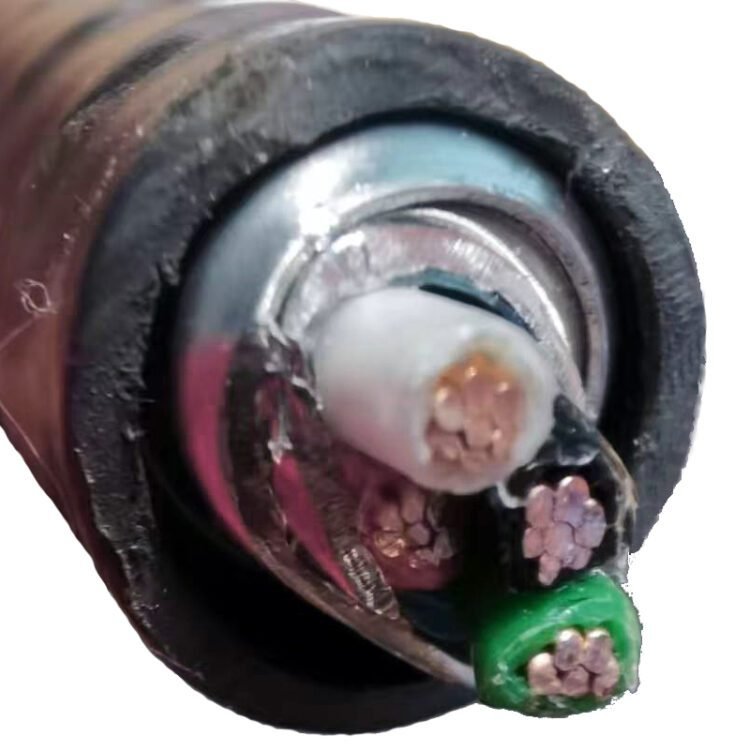

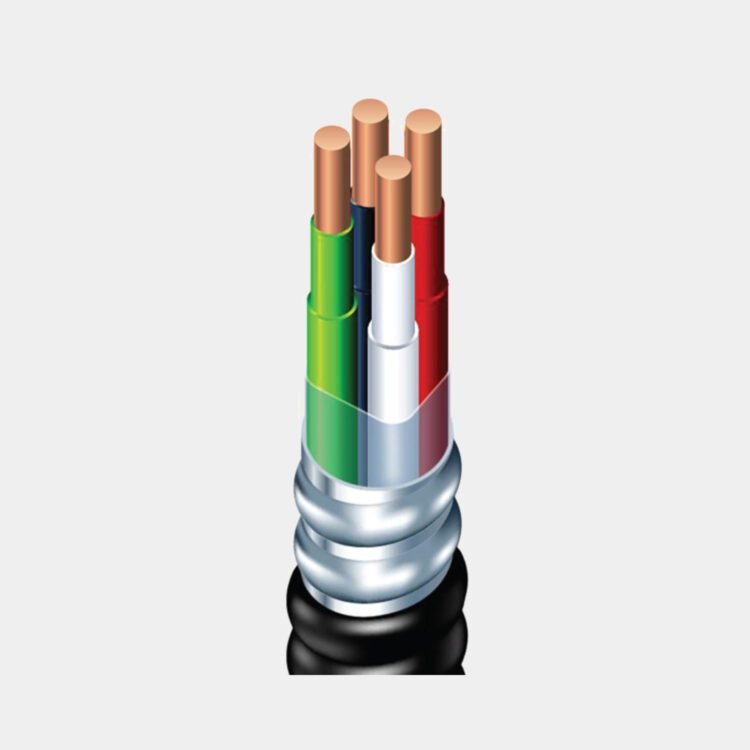

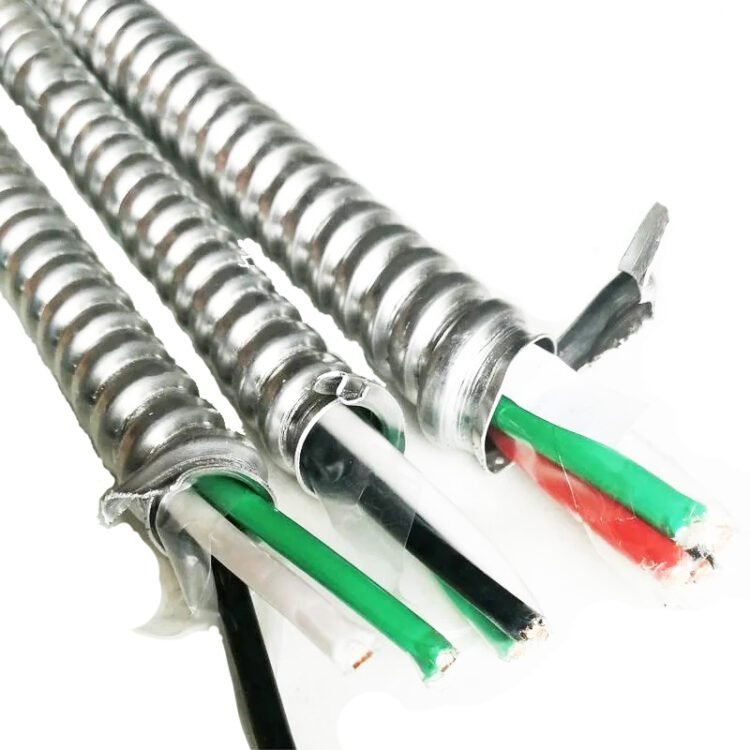

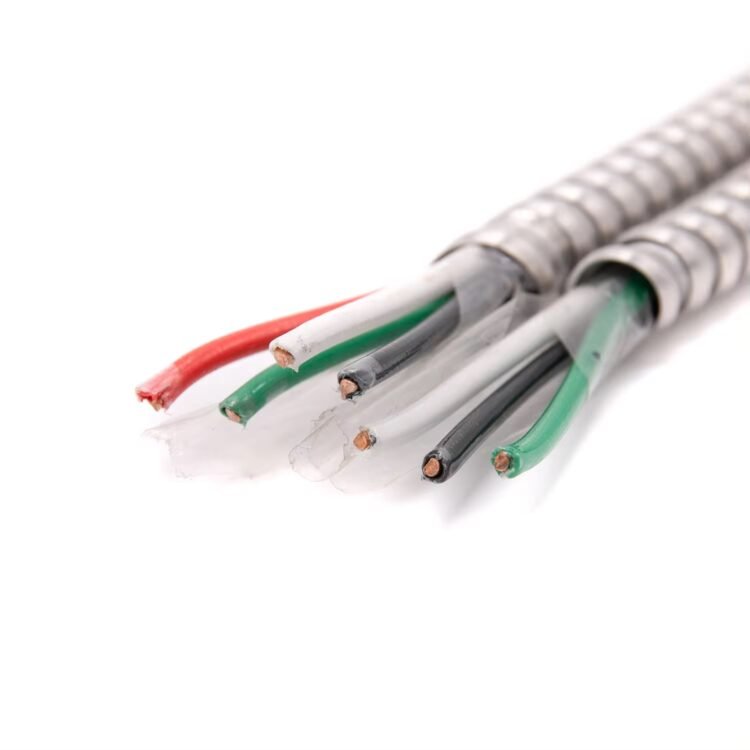

Metal Clad Cable 14AWG 4C
| Nominal Cross Seciton | 14 AWG 12AWG 10 AWG |
| Conductor: | Oxygen free copper |
| Insulation material | Flame retardant PVC, Nylon jacket |
| Armor: | Aluminum interlock armor |
| Jacket: | A flame retardant PVC jacket is optional |
| Nominal Voltage | 600V |
| Standard | UL1569 |
| Application: | House wiring, Building Wire |
Metal Clad Cable Features:
- 99.99% Pure soft annealed copper
- Selected good quality PVC material as insulatio
- Conductor Jacket: Nylon, Thickness per UL83
- Excellent conductivity
- Low eccentricity
- Fire Resistance, Flame retardant and other attributes are optional
Technical Data:
| Size AWG | Strands No./O.D (mm2) | PVC Insulation Average Thickness (mm) | Nylon Jacket Minimum Thickness （mm) | Approx O.D (mm) | Max DC Resistance 20℃ Ω/km (Bare Copper) | Approx Weight (Kg/km) | |||
| 14/2+14/1 | 1/1.63 | 0.38 | 0.10 | 11.9 | 8.45 | 141.54 | |||
| 14/3+14/1 | 1/1.63 | 0.38 | 0.10 | 12.5 | 8.45 | 170.75 | |||
| 14/4+14/1 | 1/1.63 | 0.38 | 0.10 | 13.1 | 8.45 | 200.36 | |||
| 12/2+12/1 | 1/2.05 | 0.38 | 0.10 | 12.8 | 5.31 | 184.82 | |||
| 12/3+12/1 | 1/2.05 | 0.38 | 0.10 | 13.6 | 5.31 | 227.02 | |||
| 12/4+12/1 | 1/2.05 | 0.38 | 0.10 | 14.4 | 5.31 | 269.69 | |||
| 10/2+10/1 | 1/2.59 | 0.51 | 0.10 | 14.5 | 3.343 | 263.46 | |||
| 10/3+10/1 | 1/2.59 | 0.51 | 0.10 | 15.5 | 3.343 | 329.09 | |||
| 10/4+10/1 | 1/2.59 | 0.51 | 0.10 | 16.6 | 3.343 | 395.30 | |||
| 8/2+10/1 | 7/1.23 | 0.76/0.51 | 0.13/0.10 | 17.1 | 2.144 | 364.61 | |||
| 1/2.59 | 3.343 | ||||||||
| 8/3+10/1 | 7/1.23 | 0.76/0.51 | 0.13/0.10 | 18.6 | 2.144 | 471.96 | |||
| 1/2.59 | 3.343 | ||||||||
| 8/4+10/1 | 7/1.23 | 0.76/0.51 | 0.13/0.10 | 20.2 | 2.144 | 582.33 | |||
| 1/2.59 | 3.343 | ||||||||
| 6/2+8/1 | 7/1.56 | 0.76/0.76 | 0.13/0.13 | 21.3 | 1.348 | 521.37 | |||
| 7/1.23 | 2.144 | ||||||||
| 6/3+8/1 | 7/1.56 | 0.76/0.76 | 0.13/0.13 | 22.0 | 1.348 | 686.69 | |||
| 7/1.23 | 2.144 | ||||||||
| 6/4+8/1 | 7/1.56 | 0.76/0.76 | 0.13/0.13 | 23.9 | 1.348 | 850.00 | |||
| 7/1.23 | 2.144 | ||||||||
| 4/2+8/1 | 7/1.96 | 1.02/0.76 | 0.15/0.13 | 24.1 | 0.8481 | 721.34 | |||
| 7/1.23 | 2.144 | ||||||||
| 4/3+8/1 | 7/1.96 | 1.02/0.76 | 0.15/0.13 | 27.3 | 0.8481 | 1023.89 | |||
| 7/1.23 | 2.144 | ||||||||
1. What is the minimum order quantity (MOQ)?
Usually is 1000 meters. For some small size cable, MOQ is 3000 meters. For some big size cable, MOQ is 500 meters
2. What is the Payment Terms?
30% deposit, the balance T/T before shipping.
3. What is the delivery lead time?
It depends on the quanitity and size of cable you ordered. Usually is within 15 workdays.
