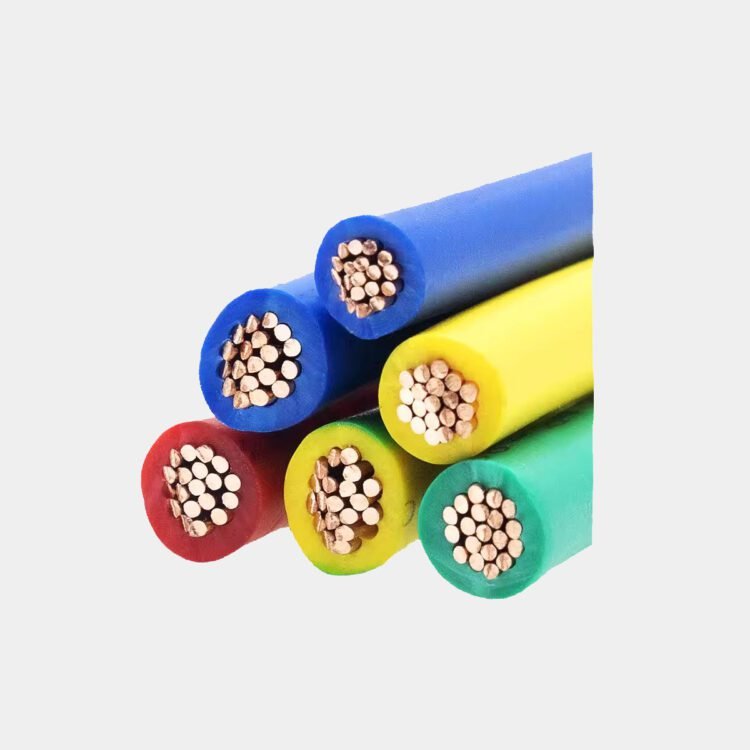

Stranded Electric Wire
| Nominal Cross Seciton (mm2) | 10 16 25 35 50 70 95 120 150 185 240 300 400 |
| Conductor: | Oxygen free copper |
| Insulation material | PVC |
| Nominal Voltage | 300/500V 450/750V |
| Standard | IEC 60227 |
| Application: | House wiring, Building Wire |
Electric wire Cable Features:
- 99.99% Pure annealed copper

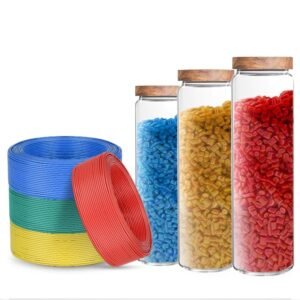

- Selected good quality PVC material as insulation
- Excellent conductivity
- Low eccentricity
- Fire Resistance, Flame retardant and other attributes are optional
Technical Data:
| Rated Voltage | Nominal Cross Section | Number of Conductor’s wire | Top Limit of Overall Diameter | Maximum DC Resistance (20℃） | Minimum Insulation Resistance (20℃） | Recommended Value of Carrying Capacity | Reference Weight |
| V | mm2 | mm | Ω/km | MΩ·km | A | KG/KM | |
| 450/750 | 10 | 7 | 6.7 | 1.83 | 0.0065 | 79 | 111 |
| 16 | 7 | 7.8 | 1.15 | 0.005 | 111 | 166 | |
| 25 | 7 | 9.7 | 0.727 | 0.005 | 146 | 263 | |
| 35 | 7 | 10.9 | 0.524 | 0.004 | 180 | 356 | |
| 50 | 19 | 12.8 | 0.387 | 0.0045 | 228 | 487 | |
| 70 | 19 | 14.6 | 0.268 | 0.0035 | 281 | 679 | |
| 95 | 19 | 17.1 | 0.193 | 0.0035 | 344 | 932 | |
| 120 | 37 | 18.8 | 0.153 | 0.0032 | 397 | 1163 | |
| 150 | 37 | 20.9 | 0.124 | 0.0032 | 456 | 1424 | |
| 185 | 37 | 23.3 | 0.0991 | 0.0032 | 519 | 1789 | |
| 240 | 61 | 26.6 | 0.0754 | 0.0032 | 592 | 2335 | |
| 300 | 61 | 29.6 | 0.0601 | 0.003 | 685 | 2924 | |
| 400 | 61 | 33.2 | 0.047 | 0.0028 | 799 | 3750 |
1. What is the minimum order quantity (MOQ)?
Usually is 1000 meters. For some small size cable, MOQ is 3000 meters. For some big size cable, MOQ is 500 meters
2. What is the Payment Terms?
30% deposit, the balance T/T before shipping.
3. What is the delivery lead time?
It depends on the quanitity and size of cable you ordered. Usually is within 15 workdays.
