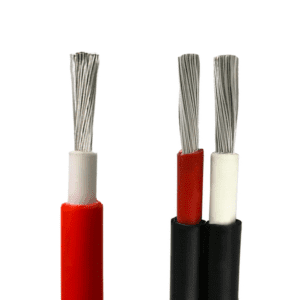

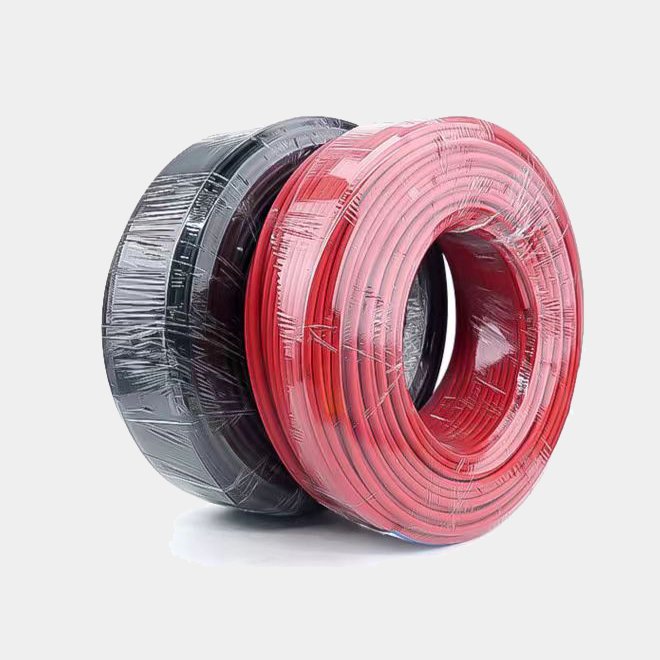

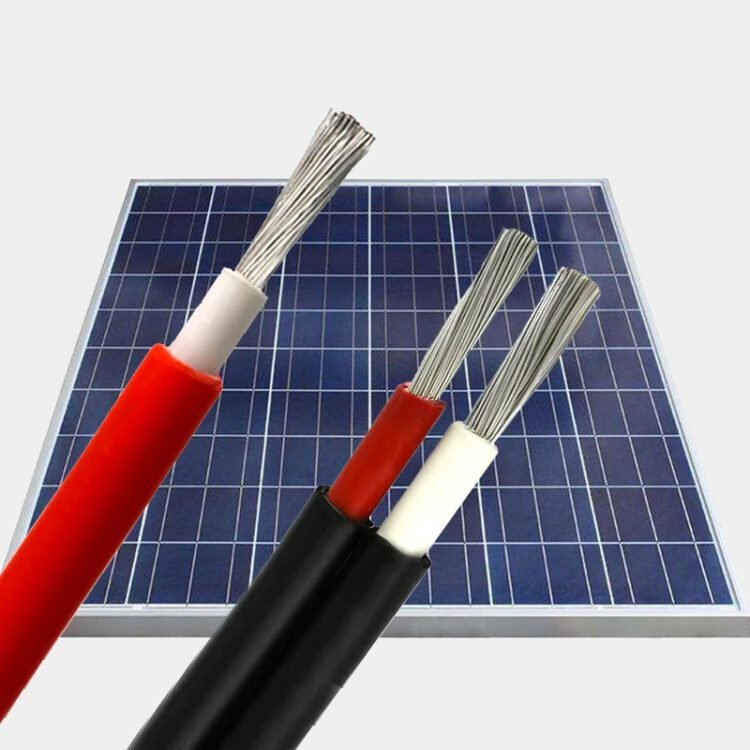

Single Core Solar Cable
| No of Cores | single core |
| Nominal Cross Seciton (mm2) | 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 16mm2 25mm2 35mm2 |
| Conductor: | Tinned Pure Copper |
| Insulation material | XLPO, Flame Retardant, Halogen free Electro-beam Cross Linked |
| Jacket | XLPO, Flame Retardant, Halogen free Electro-beam Cross Linked |
| Nominal Voltage | DC 1500V; AC 1000V |
| Application: | Connecting Phovoltaic System components inside and outside of buildings and equipment. |
Electric wire Cable Features:

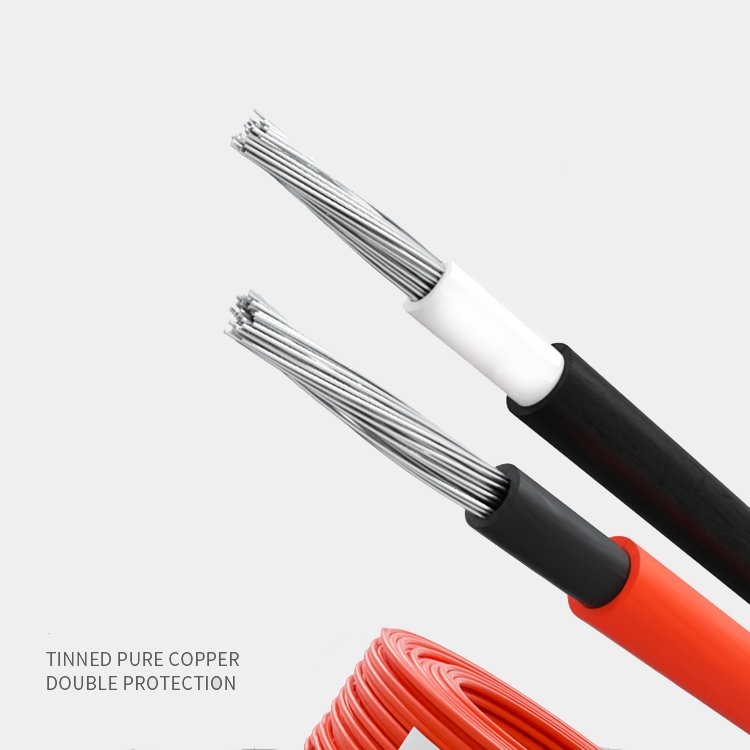

- Tinnedb 99.99% Pure annealed copper
- XLPO, Flame Retardant, Halogen free Cross Linked insulation
- Excellent conductivity
- UV Resistance, Wears Resistance, Aging Resistance.
- Test Voltage: AC6.5KV, 50Hz, 5Min
Technical Data:
| Construction | Conductor Construction | Conductor OD | Outer Diameter | Resistance Max | Current Carrying Capacity |
| n*mm2 | n/mm | mm | mm | Ω/Km | A |
| 1*1.5 | 30/0.25±0.008 | 1.58 | 4.9 | 13.3 | 30 |
| 1*2.5 | 50/0.25±0.008 | 2.02 | 5.45 | 7.98 | 41 |
| 1*4.0 | 56/0.30±0.008 | 2.3 | 6.1 | 4.75 | 55 |
| 1*6.0 | 84/0.30±0.008 | 3.42 | 7.2 | 3.39 | 70 |
| 1*10.0 | 142/0.30±0.008 | 4.56 | 9 | 1.95 | 98 |
| 1*16.0 | 228/0.30±0.008 | 5.6 | 10.2 | 1.24 | 132 |
| 1*25.0 | 361/0.30±0.008 | 6.95 | 12 | 0.795 | 176 |
| 1*35.0 | 525/0.30±0.008 | 8.74 | 13.8 | 0.565 | 218 |
| 1*50 | 720/0.30±0.008 | 9.2 | 14.8 | 0.393 | 280 |
| 1*70.0 | 988/0.30±0.008 | 11 | 16.9 | 0.277 | 350 |
| 1*95.0 | 1349/.030±0.008 | 12.5 | 18.7 | 0.21 | 410 |
| 1*120.0 | 1691/0.30±0.008 | 14.2 | 20.7 | 0.164 | 480 |
1. What is the minimum order quantity (MOQ)?
Usually is 1000 meters. For some small size cable, MOQ is 3000 meters. For some big size cable, MOQ is 500 meters
2. What is the Payment Terms?
30% deposit, the balance T/T before shipping.
3. What is the delivery lead time?
It depends on the quanitity and size of cable you ordered. Usually is within 15 workdays.
